Shower Pan Liner vs. Lead Shower Pan: What to Know

Repipe Solutions is a licensed Houston plumbing company that repairs and rebuilds tile shower pans. Depending on when a tile shower was built, the waterproofing under its floor is usually a plastic liner or, in older homes, a lead pan. This guide explains what each one is, how they compare, why they fail, and what replacing one involves.

What Is a Shower Pan Liner?

Tile and grout are not waterproof. In a traditional tile shower, water seeps through the grout and the mortar bed underneath. The liner is the layer below that mortar that actually stops the water. As Tilecoach puts it, the pan liner is the waterproofing layer, not the mortar or the tile.

The liner sits on a sloped layer of mortar called the pre-slope, runs up the walls and over the curb, and is clamped into a special two-part drain. Water that reaches the liner runs down to small weep holes in that drain and leaves the shower. Without a liner or an approved membrane, a tile shower is not waterproof.

What Is a Lead Shower Pan?

Before plastic liners, many tile showers were built over a pan made from sheet lead. Plumber Dave Yates, writing in Contractor Magazine, describes using 4-pound sheet lead, named for its weight per square foot. Lead was popular because it was soft enough to shape quickly: installers bent the edges over a board and folded the corners so every edge stayed at the top.

Plastic liners came along in the mid-1960s. PASCO says it introduced the first plastic shower pan liner in 1965, and over time vinyl replaced lead because it was faster to install. Today lead pans turn up mostly in older homes.

Lead is still legal. The Texas IRC still lists sheet lead as an approved liner, as long as it weighs at least 4 pounds per square foot, has its seams burned (lead-welded), and is separated from other materials with asphalt felt. It is just rarely used anymore.

Shower Pan Liner vs. Lead Pan: How They Compare

Sources: Texas IRC 2021, Oatey, and Noble Company product pages for PVC and CPE liners. Sheet copper is also allowed by code but is rarely seen.

PVC or CPE: Which Liner Is Better?

Both meet code. PVC is the most common and the least expensive. CPE costs more per square foot, and Noble backs its CPE liner for the life of the tile installation, compared with 5 years on its PVC. In practice, how the liner is installed matters far more than which plastic it is. Most failures come from installation mistakes, not from the material wearing out.

What About Membranes Like KERDI or RedGard?

A newer approach skips the buried liner altogether and puts a waterproof membrane on top of the mortar, right under the tile. Schluter describes the traditional liner as a “water in, water out” system, while its KERDI sheet membrane keeps water from soaking into the mortar at all. Sheet membranes like KERDI and liquid membranes like RedGard and Hydro Ban are allowed by code when they meet the ANSI A118.10 standard. For a full comparison, see our guide to the types of shower pans.

How High Should a Shower Pan Liner Go?

The Texas IRC requires the liner to turn up at least 2 inches above the finished threshold and 2 inches past the door jambs. The City of Houston inspects plumbing under the 2021 Uniform Plumbing Code, in effect since January 2, 2024. UPC-based codes, such as Minnesota’s and California’s, set the bar higher at 3 inches above the top of the finished curb. Many installers go higher still. Your inspector has the final word.

Both codes agree on two other points: the liner cannot be nailed or punctured less than 1 inch above the threshold, and it has to sit on a floor that slopes toward the drain’s weep holes.

Why Shower Pan Liners Fail

A plastic liner rarely just wears out. When it leaks, it is usually because of how it was put in:

• No pre-slope. If the liner lies flat instead of sloping to the drain, water sits in the mortar bed. Fine Homebuilding explains that a mortar bed that stays saturated weakens until it fails.
• Clogged weep holes. If mortar plugs the weep holes, water on the liner has nowhere to go. Oatey lists unprotected weep holes among the most common installation errors.
• Nails or screws through the curb. Backer board fastened through the liner on the curb, or a shower door screwed into it, creates a hole right where water collects.
• Liner too low or not over the curb. DIYTileGuy notes the liner has to go up and over the curb to the dry side.
• Cut corners. Corners should be folded, not cut and patched.
• A bad seal at the drain. In a case documented by JLC, the leak came from a clamping ring and drain body made by two different manufacturers that never sealed properly.
• Felt paper under PVC. Oatey warns that petroleum in felt paper can make a PVC liner crack or turn brittle.
• No flood test. Code requires one before tile goes down, and skipping it means a leak is only found after the shower is finished.

Why Lead Pans Fail

• Mortar attacks the lead. Cement and mortar are alkaline, and lead in direct contact with them can corrode. A 1998 lead waterproofing specification calls for coating any lead that touches concrete or a mortar setting bed with asphalt for this reason, and the IRC still requires felt between lead and other materials.
• Punctures and tears. Lead is soft. A Fine Homebuilding forum contributor notes it does not take much to tear it or poke a hole in it, and that soldered corners near the drain are common leak points.
• Cracking with age. On The Money Pit, the hosts note that over the years those pans tend to crack.
• No slope underneath. Older lead pans were often laid on a flat subfloor, so water pooled on the pan instead of draining.

Some lead pans have lasted decades. But when a lead pan starts leaking, the consensus among the pros in those sources is to replace it, not patch it.

How Do You Know If You Have a Lead Pan?

The age of the shower is the first clue. Lead pans are found mostly in older homes, and a shower that has never been rebuilt is more likely to have one. Beyond that, it is hard to tell from the surface, because the pan is buried under the mortar and tile. A plumber can usually confirm it by looking at the drain where the pan connects.

Are Lead Shower Pans Safe?

For everyday showering, a lead pan is not the same as lead in your water supply. The pan sits under the shower floor on the drain side, and water passes over it and out the drain. It does not feed back into the pipes you drink from. On skin contact, the Flint Water Study, citing the CDC, notes that lead does not readily pass through skin.

Tearing one out is different. Demolishing materials that contain lead falls under OSHA’s lead in construction standard, and cutting or grinding lead creates dust. Old bathrooms may also have lead paint on the walls or trim. Removing a lead pan is a job for a pro, not a weekend project.

What Does Replacing a Liner or Lead Pan Involve?

Because the liner or pan is under the mortar bed, replacing it means taking out the shower floor. The typical sequence:

1. Remove the floor tile, mortar bed, old liner or lead pan, and usually the curb and the bottom row of wall tile, since the liner turns up behind them.
2. Inspect and repair the subfloor, framing, or slab.
3. Set or replace the clamping drain.
4. Build a pre-slope that falls toward the drain.
5. Install the new liner or membrane, folded at the corners and carried over the curb.
6. Flood test it. The IRC requires 2 inches of water held for at least 15 minutes, and Oatey recommends at least 2 hours.
7. Pour the mortar bed, protect the weep holes, and tile.

Sometimes the problem is limited to the drain connection, and only that area needs to be opened. That is why the leak should be confirmed before anything is torn out. If you are not sure the pan is the problem, our guide to a shower pan leaking covers the signs and tests.

National cost guides from Angi and HomeGuide put a custom tile pan at $900 to $3,500. With Repipe Solutions, a shower pan leak rebuild runs $1,200 to $3,500. A permit is required in Houston when drain or supply plumbing is altered. For a full price breakdown, see our shower pan replacement cost guide.

Frequently Asked Questions

Does a tile shower need a pan liner?

Yes. Code requires a site-built tile shower floor to have an approved liner or a waterproof membrane that meets ANSI A118.10.

Can a shower pan liner be patched?

A liner under a finished tile floor cannot be reached without removing the tile and mortar. If the leak is only at the drain connection, that area can sometimes be opened and fixed on its own.

Is a lead shower pan better than a PVC liner?

Not today. Lead was the standard before plastic liners, but it is harder to work with, can corrode in contact with mortar, and tears more easily. PVC and CPE liners are what most tile showers use now.

Should I replace a lead pan with a liner or a membrane?

Either is code-approved. A PVC or CPE liner rebuilds the shower the traditional way. A bonded membrane keeps the mortar bed drier. The right choice depends on the shower layout and the tile.

Have a Leaking Liner or Old Lead Pan?

Repipe Solutions rebuilds shower pans across Greater Houston, including tearing out the old pan, setting the clamping drain, and installing the new liner or membrane. We flood test where the inspector requires it. Quotes are free and in person, with no trip charge. See our shower pan rebuild services in Houston or contact Repipe Solutions to set up a visit.

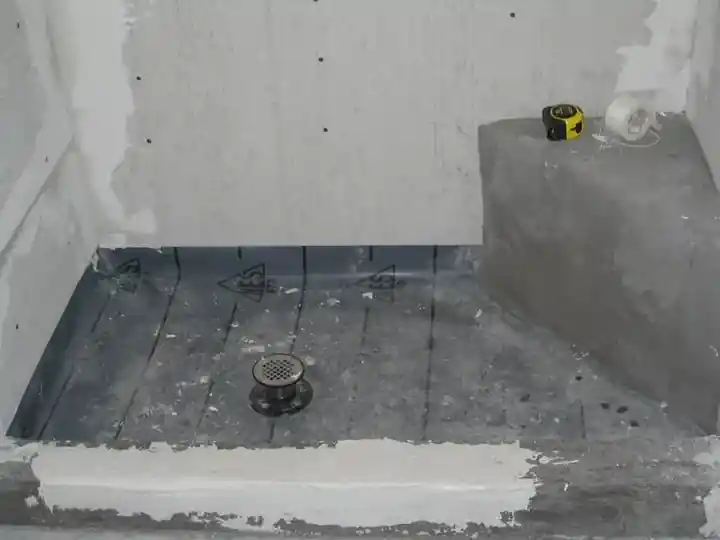

Featured photo: “Shower pan liner and clamping drain before the mortar bed” by godber via Openverse, licensed under CC BY 2.0, converted to WebP.
