Short Answer
A leaking shower pan usually shows up somewhere else first: a stain on the ceiling below, damp baseboards, a musty smell, or tile that shifts. Before blaming the pan, test the drain on its own, then flood the pan floor and watch the water level and the ceiling below. Replace the pan only once the source is confirmed.
Repipe Solutions is a licensed Houston plumbing company, and on every suspected pan leak we confirm the source before we quote a pan. This guide walks through the same order of tests: how to tell a pan leak from a drain, valve, or grout leak, how long a leak test should run, and what a repair or rebuild involves.
Shower pan leaks are frustrating because the evidence is rarely where the problem is. The water soaks through the floor of the shower, travels along the subfloor or joists, and appears as a stain somewhere nearby. That is why guessing is expensive, and why the order of testing matters.
How Can You Tell a Shower Pan Is Leaking?
The clearest signs appear outside the shower, not in it:
- A stain or drip on the ceiling below an upstairs shower. Family Handyman lists water stains on the ceiling below the shower as a sign of a shower base leak.
- Moisture wicking into baseboards next to the shower curb, or a musty smell in an adjoining closet, both noted in this Austin Tile Pro repair case.
- Grout that darkens around the drain and never fully dries, or mold near the drain, which can mean water is trapped in the mortar bed under the tile, according to DIY Tile Guy.
- A floor that moves or flexes when you step in, or cracks in a molded shower base, which Angi links to water damage underneath.
Any one of these is worth investigating. Two or more together, especially a ceiling stain under the shower, make a leak very likely.
Is It the Shower Pan, the Drain, or Something Else?
A ceiling stain under a shower does not prove the pan has failed. The drain, the valve, the supply lines, and the grout on the walls can all leak into the same spot. The way to separate them is to test one part at a time, starting at the bottom.
Plumber Richard Trethewey of This Old House recommends not running the shower at first. Instead, pour water straight into the drain to rule it out, then work upward through the pan, the valve, the caulk and grout, and the wall ledges.
| Test | How It Works | A Leak Points To |
|---|---|---|
| 1. Drain only | Pour a bucket of water directly into the drain without wetting the shower floor | The drain body, drain joint, or waste pipe |
| 2. Pan flood | Plug the drain, fill the floor with water, mark the level, and watch the level and the ceiling below | The pan, the liner, its seal at the drain, or the curb |
| 3. Valve | Check with the water off and on, and look behind the trim plate for stains | The valve body or the supply connections |
| 4. Wall spray | Spray one section of wall grout and caulk at a time, starting at the bottom | Grout, caulk, niches, benches, or ledges |
The grout test matters more than most people expect. Family Handyman explains that tile leaks happen when water seeps through deteriorating grout or caulk and gets into the wall behind the tile. Tile and grout are not waterproof on their own; the waterproof layer is underneath.
How Do You Test a Shower Pan for Leaks?
A basic pan flood test is something a homeowner can do safely, as long as you check below the shower while it runs.
- Dry the floor and surrounding area so any new water is easy to spot.
- Seal the drain with a test plug, or with tape that extends well past the drain on all sides.
- Fill the shower floor with about 2 inches of water, below the top of the curb.
- Mark the water line with tape or a grease pencil.
- Watch the ceiling below and the baseboards nearby while you wait, and check the water line again later.
On a finished tile floor, a small drop in the water line is not proof on its own, because grout and the mortar bed absorb some water. A wet spot on the ceiling below while the floor is flooded is much stronger evidence. If the pan test stays dry but the drain-only test leaks, the drain is your problem, not the pan.
How Long Should a Shower Pan Leak Test Last?
You will see very different answers online, because each one describes a different test.
| Source | Water Depth | How Long |
|---|---|---|
| International Residential Code (liner test) | At least 2 inches at the threshold | At least 15 minutes |
| Oatey (liner manufacturer) | Up to curb height | At least 2 hours |
| Schluter (membrane manufacturer) | Base filled, level marked | 24 hours is typical |
| Angi (homeowner check) | About 2 inches | About 8 hours |
The code and manufacturer tests are run on a bare liner or membrane before any tile goes on, which is when a leak is cheapest to fix. A homeowner test on a finished floor checks the whole assembly, so a longer wait and a careful look below give a more reliable answer.
Why Does a Shower Pan Leak Show Up on the Ceiling Below?
Water that gets past the liner has nowhere to go but down. On a second floor, it soaks the subfloor and eventually reaches the drywall ceiling underneath. In one case described by the Journal of Light Construction, a ceiling leak below a shower traced back to a drain clamping ring installed with its weep holes facing the wrong way, so the liner was never properly sealed to the drain.
The stain is not always directly under the failure point. Water can travel along joists or the top of the ceiling before it drips, which is one more reason to test before cutting into anything.
What Are Weep Holes, and Can They Cause a Leak?
In a tiled shower, the drain has small openings called weep holes just above the liner. Water that soaks through the grout runs down to the liner and out through these holes into the drain. DIY Tile Guy explains that when weep holes clog, water stays trapped in the mortar bed, which leads to smells, darkened grout around the drain, and mold.
Clogged weep holes do not always mean the liner is leaking, but they keep the floor saturated, and a liner that sits in water for years is more likely to fail at its weakest point, the drain connection.
Can a Leaking Shower Pan Be Repaired, or Does It Need Replacing?
It depends on where the water is getting through.
- Grout or caulk: if the wall spray test finds the leak, regrouting or recaulking may solve it. Repipe Solutions charges $250 to $850 for a shower regrout or recaulk in Houston.
- The drain connection: a liner that is not properly clamped or sealed at the drain can sometimes be corrected by opening only the area around the drain, as in the JLC case above.
- The liner itself: a torn, punctured, or missing liner means the shower floor has to be rebuilt. Repipe Solutions charges $1,200 to $3,500 for a shower pan leak rebuild in Houston.
Angi describes sealers and drop-in liners as short-term fixes. They can buy time, but they do not repair a failed liner underneath the tile.
Will a Leaking Shower Pan Cause Mold?
It can, and a slow leak gives mold plenty of time. The EPA advises drying water-damaged areas “within 24-48 hours to prevent mold growth.” A pan leak has usually been wet much longer than that by the time a stain appears.
The EPA also warns that “if you clean up the mold, but don’t fix the water problem, then, most likely, the mold problem will come back.” Painting over a ceiling stain without stopping the leak only hides the problem.
Does Homeowners Insurance Cover a Leaking Shower Pan in Texas?
Usually not the pan itself. The Texas Department of Insurance says most policies cover “sudden and accidental water damage,” but “usually won’t cover damage from gradual leaks.” Most shower pan leaks are gradual.
Coverage depends on your policy, so photograph the damage, keep any plumber’s report that names the cause, and call your agent before assuming either way.
What to Do If You Think Your Shower Pan Is Leaking
- Stop using that shower until the source is found.
- Photograph the stain, baseboards, and any damage.
- Run the drain-only test, then the pan flood test, and note what you see below.
- Do not start tearing out tile based on a guess.
- Have a licensed plumber confirm the source before you agree to a pan replacement.
How Repipe Solutions Handles a Leaking Shower Pan
We confirm where the water is coming from before we quote a pan, so you are not paying to rebuild a floor when the real problem is the drain, the valve, or the grout. If the pan has failed, the new pan is flood-tested where the inspector requires it before the tile goes back on. And if the leak has already damaged the ceiling below, our team can repair the drywall once the area is dry.
- Shower regrout or recaulk: $250 to $850
- Shower pan leak rebuild: $1,200 to $3,500
Frequently Asked Questions
How do I know if my shower pan is leaking?
Look for a stain on the ceiling below the shower, damp baseboards beside it, a musty smell, darkened grout around the drain, or a floor that moves. A pan flood test with a check of the ceiling below confirms it.
Is it the shower pan or the drain that is leaking?
Pour water directly into the drain without wetting the floor. If that leaks, it is the drain. If the drain test stays dry but a flooded floor leaks, the pan or its seal at the drain is the likely cause.
How long should a shower pan flood test last?
The International Residential Code requires at least 2 inches of water for at least 15 minutes on a new liner. Oatey recommends at least 2 hours, and Schluter says 24 hours is typical.
Can grout cause a leak that looks like a pan leak?
Yes. Tile and grout are not waterproof, and failed grout or caulk on the walls can leak into the same area below. Spray-test the walls one section at a time to check.
How much does it cost to fix a leaking shower pan?
In Houston, Repipe Solutions charges $250 to $850 for a regrout or recaulk and $1,200 to $3,500 for a full shower pan leak rebuild.
Think Your Shower Pan Is Leaking?
Repipe Solutions finds the source before recommending a fix, then repairs or rebuilds the pan. See our shower pan repair services in Houston, learn about our leak detection, or contact Repipe Solutions to schedule an inspection.

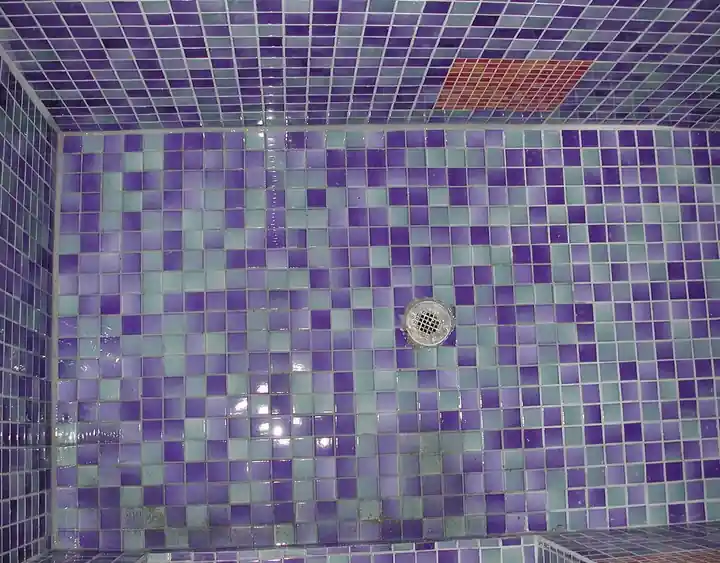

Featured photo: “Mosaic shower floor with drain” by Editor B via Openverse, licensed under CC BY 2.0, converted to WebP.
